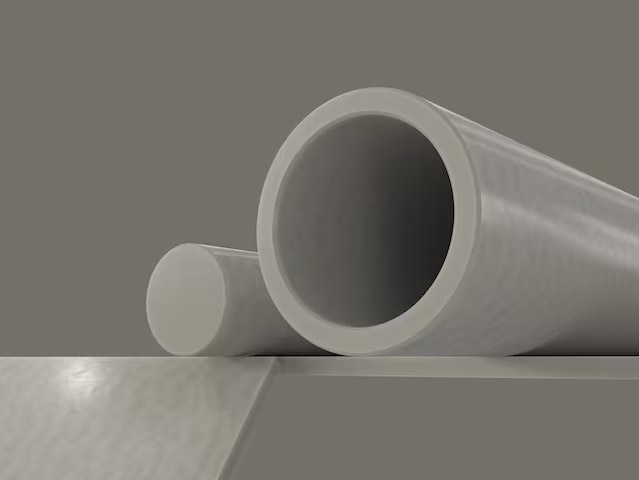

Ketron ™ GF30 polyetheretherketone PEEK is an extruded 30% glass fiber reinforced product with superior dimensional stability, excellent chemical resistance, corrosion resistance, and creep resistance. After adding glass fiber, Ketron ™ The expansion rate of GF30 PEEK is significantly reduced, and the bending modulus is increased. In addition to possessing these characteristics, Ketron ™ GF30 PEEK is often highly suitable for structural applications that require increased strength, stiffness, or stability, especially at temperatures above 300 ° F/150 ° C.
Performance
- Often very suitable for structural applications that require increased strength, stiffness, or stability, especially at temperatures above 300 ° F/150 ° C
- High bending modulus
- Good wear resistance and toughness
- Low expansion rate
- Wear resistant
- Excellent dimensional stability
| Performance |
Value |
| Heat Deflection Temperature at 1.8MPa (264 psi) (ºC) |
230 |
| Continuous allowable service temperature in air |
250 |
| Flammability (UL Rating) |
V-0 |
| Performance |
Value |
| Tensile Strength (MPa) |
80 |
| Tensile Modulus of Elasticity (MPa) |
7,000 |
| Compressive stress at 1% nominal strain (MPa) |
54 |
| Compressive stress at 2% nominal strain (MPa) |
103 |
| Compressive stress at 5% nominal strain (MPa) |
155 |
| Flexural Strength (MPa) |
155 |
| Charpy Impact Notched (kJ/m²) |
3.0 |
| Performance |
Value |
| Hot Water / Steam |
Acceptable |
| Acids, Weak |
Acceptable |
| Acids, Strong (pH 1-3) |
Limited |
| Alkalies, Weak |
Acceptable |
| Alkalies, Strong (pH 11-14) |
Acceptable |
| Hydrocarbons - Aromatic |
Acceptable |
| Hydrocarbons - Aliphatic |
Acceptable |
| Ketones, Esters |
Acceptable |
| Chlorinated Solvents |
Acceptable |
| Alcohols |
Acceptable |
| Inorganic Salt Solutions |
Acceptable |
| Performance |
Value |
| Dielectric Strength (kV/mm) |
24 |
Industry Specific Usage (FOOD)
| Performance |
Value |
| FDA |
Compliant |
| EU |
Not compliant |
| USDA |
Not compliant |
| 3A-SSI |
Not compliant |
| VMX materials |
Not compliant |
Industry Specific Usage (MEDICAL)
| Performance |
Value |
| ISO 10993-5 and USP <87> |
Not compliant |
| ISO 10993-10 Sensitization |
Not compliant |
| ISO 10993-10 (Intracutaneous Reactivity) and USP <88> |
Not compliant |
| ISO 10993-11 and USP <88> |
Not compliant |
| USP <88> (Implant) |
Not compliant |
| ISO-10993-4 |
Not compliant |
| USP <661> |
Not compliant |
| USP Class VI |
Not compliant |
| AFO - Animal Free Origin |
Not compliant |
Industry Specific Usage (RECYCLED)
| Performance |
Value |
| Statera™ portfolio |
Not compliant |
Industry Specific Usage (NUCLEAR)
| Performance |
Value |
| Shielding Portfolio |
Not compliant |
| PMUC certified |
Not compliant |
Industry Specific Usage (SEMICON)
| Performance |
Value |
| ESd materials |
Not compliant |
| Conductive materials |
Not compliant |
| Performance |
Value |
| Base Material |
PEEK |
| Brand Family |
|
| Colors |
自然色 (米色) |
| Density (g/cm3) |
1.51 |
| Water Absorption after 24 hrs immersion in water (%) |
0.05 |
| Water Absorption at saturation in water (%) |
0.35 |
| Wear Factor (µm/km) |
7 |
| Available shapes |
板 棒 管 |
| Main Use Bearing and/or Structural |
Structural |
