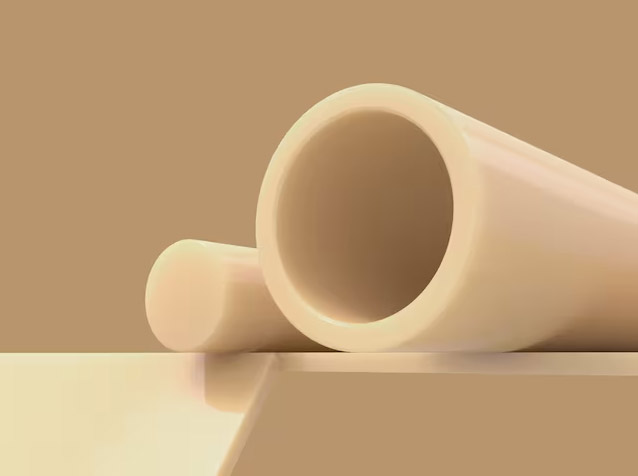

Flextron ™ 1055 TPE is a thermoplastic elastomer material that performs well in applications that require better performance than traditional elastomers. This grade has good chemical resistance and can maintain consistent mechanical properties in environments with large temperature changes. Due to these characteristics, Flextron ™ 1055 TPE components are the preferred solution for the transportation and railway industries, often used to replace conventional rubber and steel on high-performance springs in locomotive and vehicle buffers, tension gears, and traction gear applications.
Performance
- Good chemical resistance
- Maintain consistent mechanical properties in environments with significant temperature fluctuations
- Better performance than traditional elastomers
| Performance |
Value |
| Heat Deflection Temperature at 1.8MPa (264 psi) (ºC) |
60 |
| Continuous allowable service temperature in air |
110 |
| Flammability (UL Rating) |
HB |
| Performance |
Value |
| Tensile Strength (MPa) |
20 |
| Tensile Modulus of Elasticity (MPa) |
310 |
| Compressive stress at 1% nominal strain (MPa) |
4 |
| Compressive stress at 2% nominal strain (MPa) |
14 |
| Compressive stress at 5% nominal strain (MPa) |
20 |
| Flexural Strength (MPa) |
19 |
| Charpy Impact Notched (kJ/m²) |
90P |
| Performance |
Value |
| Hot Water / Steam |
|
| Acids, Weak |
|
| Acids, Strong (pH 1-3) |
|
| Alkalies, Weak |
|
| Alkalies, Strong (pH 11-14) |
|
| Hydrocarbons - Aromatic |
|
| Hydrocarbons - Aliphatic |
|
| Ketones, Esters |
|
| Chlorinated Solvents |
|
| Alcohols |
|
| Inorganic Salt Solutions |
|
| Performance |
Value |
| Dielectric Strength (kV/mm) |
|
Industry Specific Usage (FOOD)
| Performance |
Value |
| FDA |
Not compliant |
| EU |
Not compliant |
| USDA |
Not compliant |
| 3A-SSI |
Not compliant |
| VMX materials |
Not compliant |
Industry Specific Usage (MEDICAL)
| Performance |
Value |
| ISO 10993-5 and USP <87> |
Not compliant |
| ISO 10993-10 Sensitization |
Not compliant |
| ISO 10993-10 (Intracutaneous Reactivity) and USP <88> |
Not compliant |
| ISO 10993-11 and USP <88> |
Not compliant |
| USP <88> (Implant) |
Not compliant |
| ISO-10993-4 |
Not compliant |
| USP <661> |
Not compliant |
| USP Class VI |
Not compliant |
| AFO - Animal Free Origin |
Not compliant |
Industry Specific Usage (RECYCLED)
| Performance |
Value |
| Statera™ portfolio |
Not compliant |
Industry Specific Usage (NUCLEAR)
| Performance |
Value |
| Shielding Portfolio |
Not compliant |
| PMUC certified |
Not compliant |
Industry Specific Usage (SEMICON)
| Performance |
Value |
| ESd materials |
Not compliant |
| Conductive materials |
Not compliant |
| Performance |
Value |
| Base Material |
TPE |
| Brand Family |
|
| Colors |
自然色 (灰白色) |
| Density (g/cm3) |
1.2 |
| Water Absorption after 24 hrs immersion in water (%) |
|
| Water Absorption at saturation in water (%) |
0.65 |
| Wear Factor (µm/km) |
|
| Available shapes |
棒 板 |
| Main Use Bearing and/or Structural |
Structural |
